Brand Name : Cheng Wen
Model Number : P2-16S
Certification : CE
Place of Origin : Made in China
MOQ : 1PC
Price : $515/PC
Payment Terms : T/T, Western Union, MoneyGram
Supply Ability : 300SQM/MONTH
Delivery Time : 7-10 DAYS
Packaging Details : 4IN1 / 6IN1 / 8IN1 Flight cae
Module size : 256mm*128mm
Cabinet size : 512mm*512mm
Pixel pitch : 2mm
Pixels Density : 250000 dot/m2
Package mode : SMD1515
Pixel resolution : 64dots(W)*64 dots(H)
Specification
P2 Indoor SMD 3in1 Technical Parameters | ||
Unit Module | Item | Parameter |
Model Number | P2-16S | |
Module size | 256mm*128mm | |
Pixel pitch | 2mm | |
Pixels Density | 250000 dot/m2 | |
Pixel configuration | 1R1G1B | |
Package mode | SMD1515 | |
Pixel resolution | 64dots(W)*64 dots(H) | |
Max Power consumption | 20W | |
Weight | 0.22KG | |
Drive type | Constant drive | |
Scan mode | 1/16scan | |
Port type | HUB75 | |
Brightness of white balance | ≥1200cd/m2 | |
LED Unit Cabinet | Dimension | 512mm*512mm |
Quantity of Module | 8 | |
Power supply | 5V/40A | |
Pixel per cabinet | 256*256 | |
Best viewing distance | ≥2 m | |
Best viewing distance | 160°(W) 120°(H) | |
Temperature | storage:-35℃~+85℃ working:-20℃~+50℃ | |
Operation humidity | 10%-95% | |
Power | Working voltage | 220V / 110V |
Average Power consumption | 500 W/m2 | |
Max power consumption | 1000 W/m2 |
Pictures
![]() |

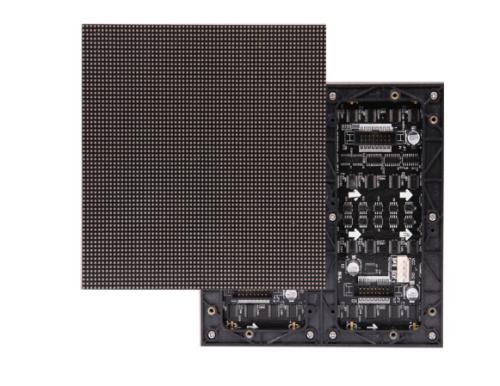

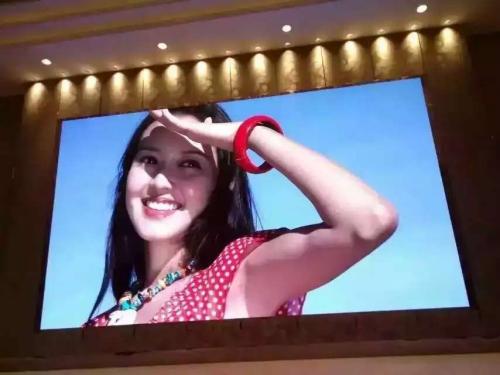

MBI5124 IC Led Advertising Screen P2-16S 2mm Pixel Pitch , 512mm*512mm Cabinet Size Images |
