Product Descripon
1 Module size 250*250mm
2 Die-casting aluminum cabinet size 500*500mm /500*1000mm
3 Density of pixel 65536dots/m2
4 Die-casting alcuminum cabinet Weight 7.5kg/15kg
5 Module resolution 64*64dots
6 Viewing Distance >= 4m
7 Brightness Luminance 1600-1800cd/m2
8 Ingress protection front/rear IP43
9 Hor. Viewing angle H:140°
Vert. viewing angle V:140°
10 Operating Humidity 10~99%
11 Storage Humidity 10~99%
12 Refresh Rate >= 650 Hz
13 Life Time 100000 hrs
14 Software led stdio
15 Working Voltage 220/110 VAC 50/60 Hz
16 Working Environment Temperature -20°C~50°C
17 Drive Method 1/13scan
18 The Greatest Consumption <=880 W/m2
Trade Terms:
| Price term | EXW Price in Guangzhou |
| Payment | T/T, Western Union |
| Shipping method | By express(DHL ,UPS,TNT,FedEx ), ship by sea or air |
| Sample Order/Time | Accept / 2 days |
| Production time | 3-7 days after receiving payment ,depend on the quantity |
| Packing | 1.Carton 2. Flight case |
| Warranty | 2 years |
| After sells service | In time, High efficiency, Satisfiable |
Why Choose Us?
Professional wholesale and manufacturer of stage light and Led screen.
1. We have over 5 years’ experience of stage light and Led screen.
2. We specialize in High configuration and high quality products.
3.We have professional R&D team who has professional development ability.
4. Integrated research and development, design, production, sales and service.
Every material using inside will be picked up carefully and be fully tested.
5. 100% manufacture, 2 year spare parts’ guarantee time(but the light source and switch power supply are usually not included in the range of free of charge).
6. We are factory, we can offer better price than Trade Company.

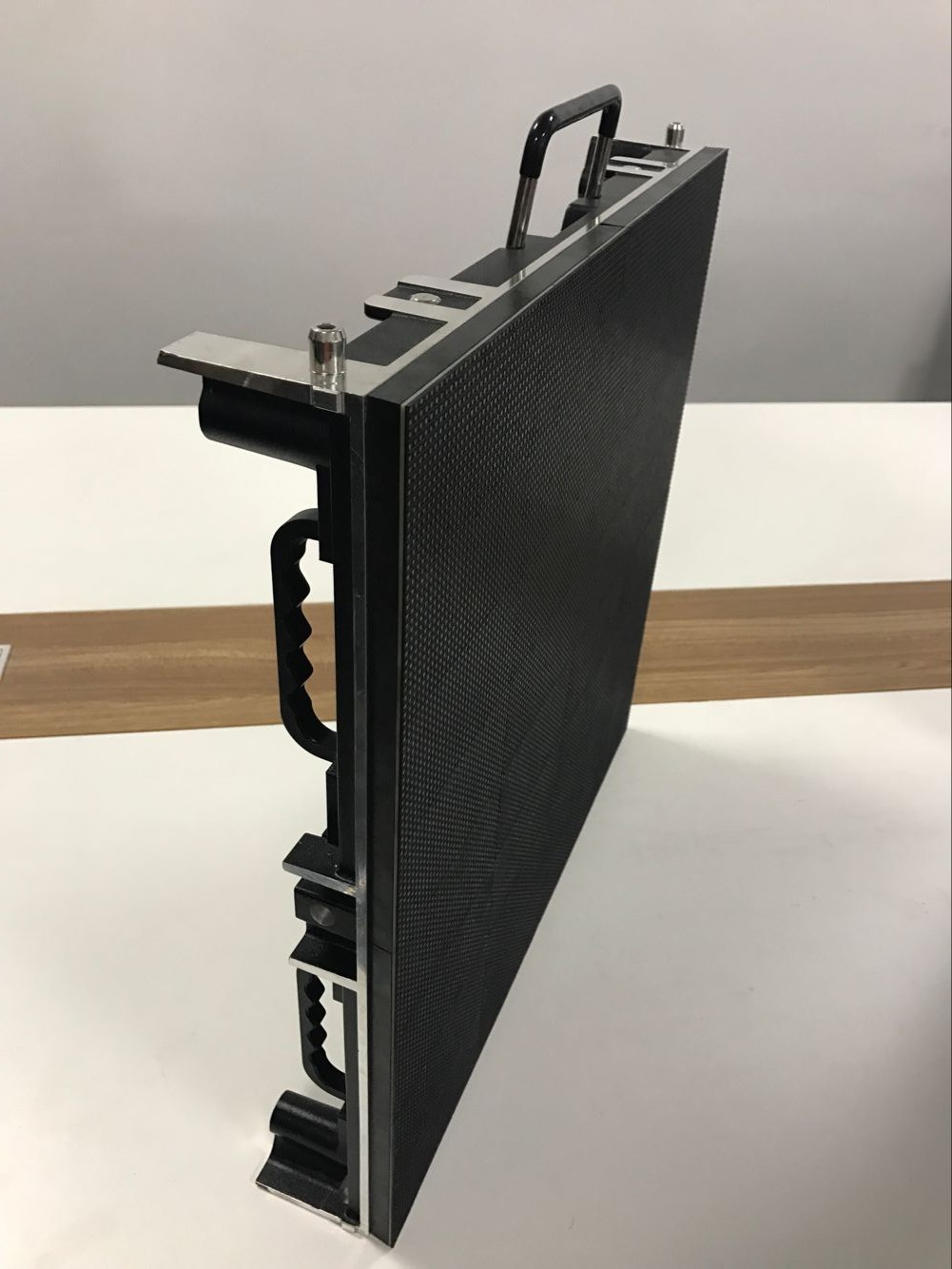

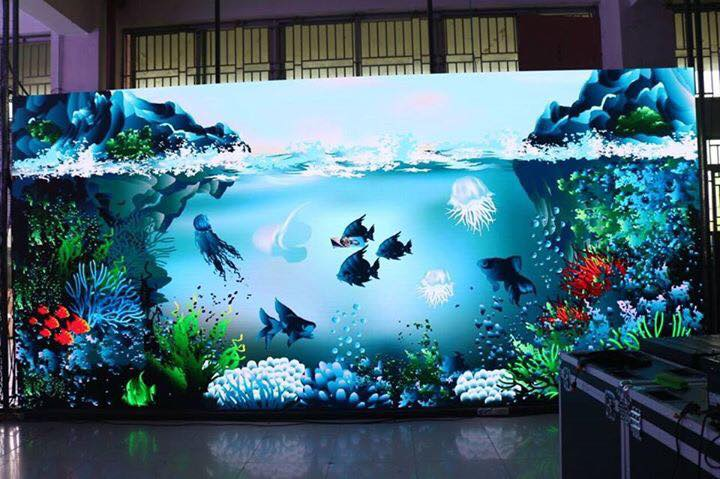

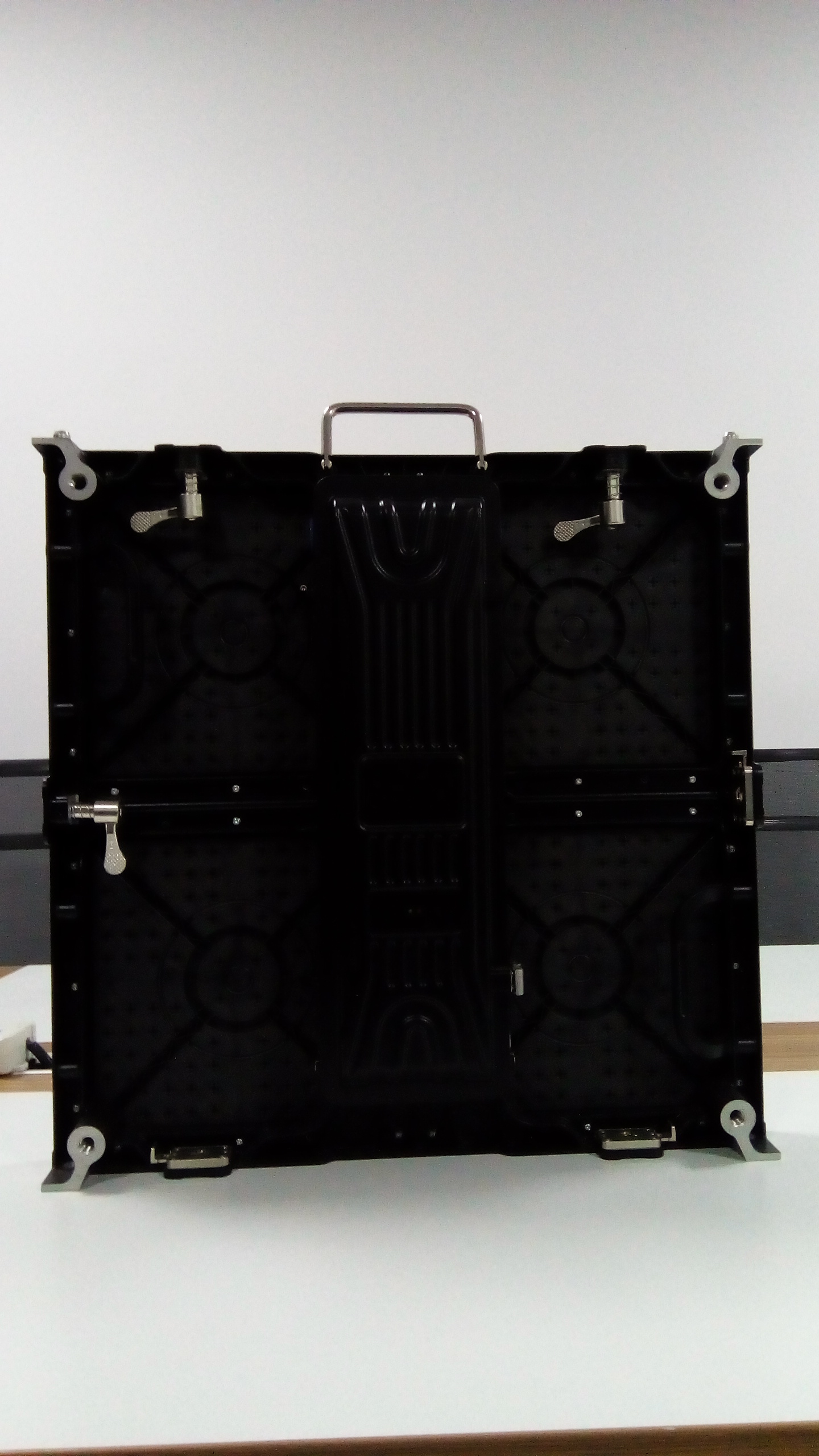

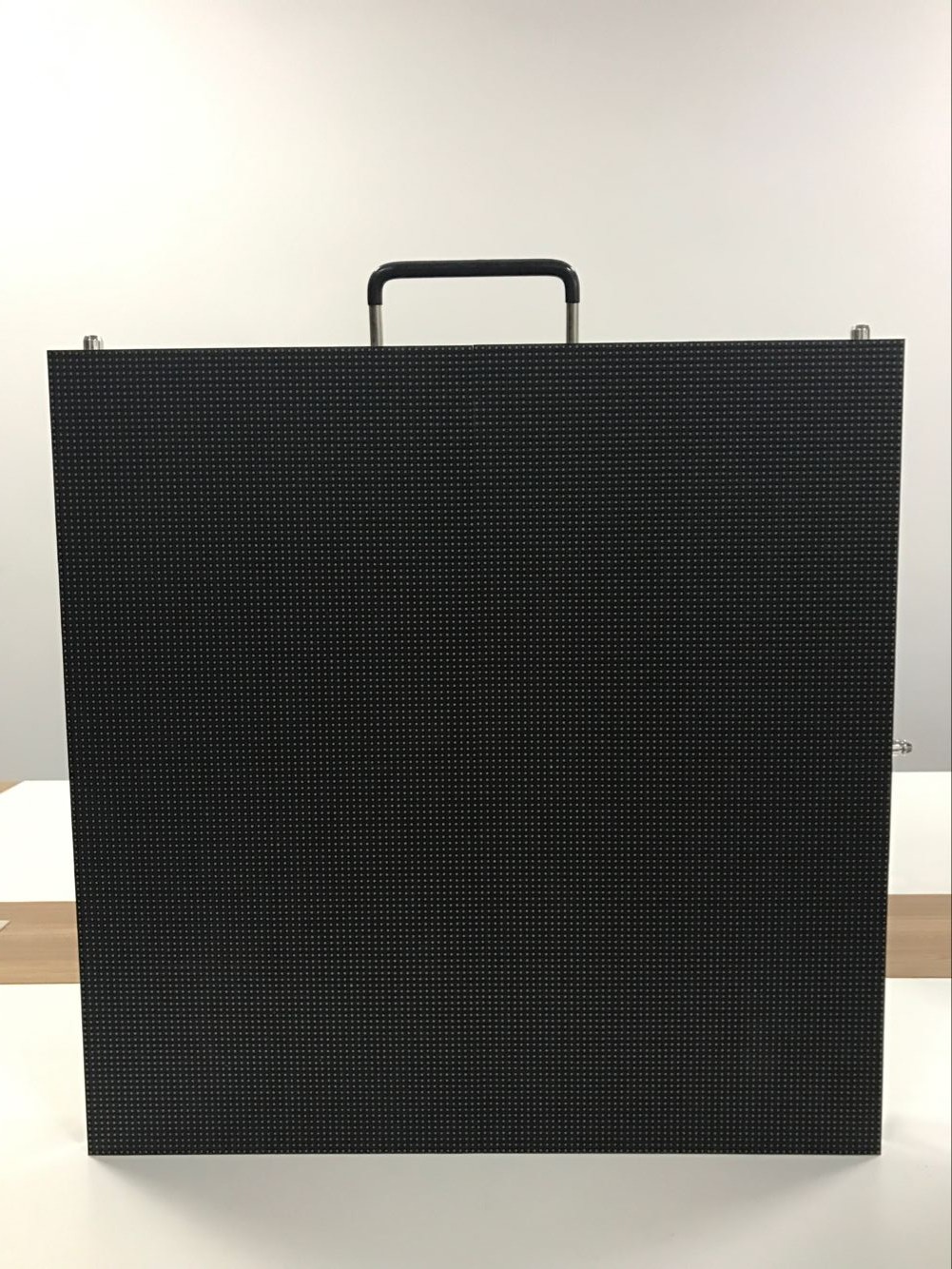

Pictures
More Questions
Q1. What is DIP & SMD ?
A: DIP-- It means put the bases of DIP packaging lights through PCB, and fill the pin in lamp holders by welding.
SMD-- It means put SMT packing lapms weld on PCB.
Q2. DIP and SMD outdoor LED Display , which is better?
A:Compared with DIP Display, SMD display have the advantage of light weight, wide visual angle, good color fidelity, and better color uniformity.For production, SMD is easy to use automatic machine to produce . Save the labor cost and able to large-scale production. In the future , SMD display will have more competitive price. But DIP Display also have the advantage. The waterproof function , the brightness, moisture-proof and UV protection function. Performance of DIP display is better.
Q3. How about the guarantee of led display?
A: We guarantee all of our module and spare parts two years.
Q4. Is it ok to print my logo on led display product?
A: Yes. Please inform us formally before our production .
Q5: What is the payment methods?
A: T/T , usually 30% prepayment before production, 70% balance to be paid before delivering,it also change according to total quantity
Product Tags:
|
|
P3.91 IP43 65536dots/sqm MBI5124IC Nova Star Control 2000nits Brightness Video Diplay Images
|
